Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI 1 Year Warranty

Very Fast Response. Quick shipping. Goods packed very well. I am very satisfied. Awesome!!

—— ASHISH

Good service, part arrived sooner that expected. Thank you very much!

—— Marcela

Well resolved my problem. Thank you so much!! I will keep on buying from you

—— Muhammed

I'm Online Chat Now

Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI 1 Year Warranty

China Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI 1 Year Warranty supplier
Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI 1 Year Warranty supplier Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI 1 Year Warranty supplier Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI 1 Year Warranty supplier Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI 1 Year Warranty supplier

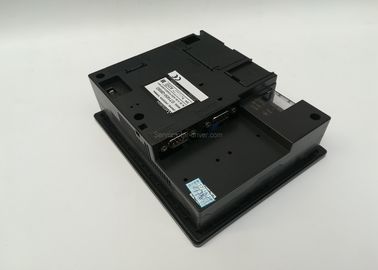

Large Image :  Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI 1 Year Warranty

Product Details:

Place of Origin: Japan
Brand Name: Mitsubishi
Certification: ROHS,CE,UL,CCC,VDE
Model Number: GT1450-QMBD

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Original Packing With Good Protection Material
Delivery Time: 0-2 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 1000pcs/Day
Contact Now
Detailed Product Description
Product Type: Graphic Operation Terminal Condition: Brand New
Warranty: One Year Application: Automation Machine
Product Name: 5.7 Inch Touch Screen HMI Alternate Number: GT145O-QMBD
High Light:

hmi display touch screen

,

industrial touch screen hmi

Original Mitsubishi GT1450-QMBD Graphic Operation Terminal Touch Screen HMI



Mitsubishi touch screen GOT1000 Series

5.7" diagonal [320 x 240 dots], TFT monochrome (black/white), built-in battery



Product Name Graphic Operation Terminal
Part number GT1450QMBD GT1450 QMBD GT145OQMBD GT145O QMBD
Manufacturer brand Mitsubishi
Description Touch Screen HMI
Condition 100% brand new
Warranty one year
Application Industrial automation



Performance Specifications

Type GT1450-QMBD
Display section Display device TFT monochrome (white/black)
liquid crystal
Screen size 5.7"
Resolution(dots) 320 *240 dots
Display size (WxH) mm W115(4.53) ´ H86(3.39)[mm](inch) (Horizontal format)
Display character 16-dot standard font: 20 characters ´ 15 lines, 12-dot standard font: 26 characters ´ 20 lines
Display color Monochrome (white/black), 16 scales
Display angle Left/Right: 80 degrees, Top: 80 degrees, Bottom: 60 degrees (Horizontal format)
Intensity of LCD only 300[cd/m2]
Intensity adjustment 8-level adjustment
Life Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25°C)
Backlight   LED (irreplaceable by a user) Backlight off/screen saving time can be set.
  Life Approx. 70,000h or longer (Time for display intensity reaches 50% at the operating ambient temperature of 25°C)
Touch panel Type Analog resistive film touch panel
Key size Minimum 2*2 dots (per key)
Number of points touched simultaneously Simultaneous presses not allowed. (Only 1 point can be touched.)
Life 1 million times or more (operating force 0.98N max.)
Memory C drive Flash memory (Internal), for storing project data (9Mbytes) and OS
Life (Number of write times) 100,000 times
Battery   GT11-50BAT lithium battery
Type Magnesium maganese dioxide lithium primary battery
Backup target Clock data, alarm history, recipe data, time action setting value, advanced alarm/advanced recipe, logging, hardcopy and SRAM user area
Life Approx. 5 years (Operating ambient temperature of 25°C)



Power Supply Specifications

Item GT1450-QMBD
Input power supply voltage 24VDC (+10% -15%), ripple voltage 200mV or less
Fuse (built-in, not exchangeable) 1.6A
Power consumption 7.68W (320mA/24VDC) or less
At backlight off 6.72W (280mA/24VDC) or less
Inrush current 30A or less (26.4V) 2ms
Permissible instantaneous power failure time Within 5ms
Noise immunity Noise voltage: 1000Vp-p, Noise width: 1ms (by noise simulator of 30 to 100Hz noise frequency)
Dielectric withstand voltage 500VAC for 1 minute (across power supply terminals and earth)
Insulation resistance 10MW or larger by insulation resistance tester (across power supply terminals and earth)
Applicable wire size For power supply: 0.75[mm2] or more, For grounding: 2[mm2] or more
Applicable solderless terminal Solderless terminal for M3 screw RAV1.25-3, V2-N3A, FV2-N3A
Applicable tightening torque (Terminal block terminal screw) 0.5 to 0.8[N·m]





Why choose us?
1. Best price and large stock
2. Clients from USA, Europe, Mexico, Pakistan,Singpore, etc. purchase large quantity
3. Good service and One year warranty
4. Our company has good resources in china, and we have good partners.
5. Our company try to solve all problem for you regards product.
7. Fast response and professional answer.
8. Welcome to contact us for cooperation!
