Original Mitsubishi Transistor Input Output Module Sink Type A1SY41P

China Original Mitsubishi Transistor Input Output Module Sink Type A1SY41P supplier
Original Mitsubishi Transistor Input Output Module Sink Type A1SY41P supplier Original Mitsubishi Transistor Input Output Module Sink Type A1SY41P supplier Original Mitsubishi Transistor Input Output Module Sink Type A1SY41P supplier Original Mitsubishi Transistor Input Output Module Sink Type A1SY41P supplier

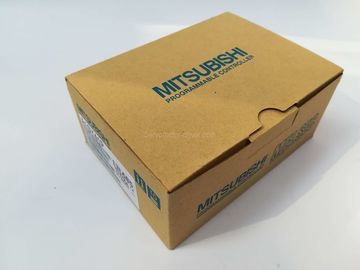

Large Image :  Original Mitsubishi Transistor Input Output Module Sink Type A1SY41P

Product Details:

Place of Origin: Japan
Brand Name: Mitsubishi
Certification: ROHS,CE,UL,CCC,VDE
Model Number: A1SY41P

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Original Packing With Good Protection Material
Delivery Time: 0-2 days
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 1000pcs/Day
Contact Now
Detailed Product Description
Product Type: Sink Type Transistor Output Module Condition: Brand New
Warranty: One Year Application: Automation Machine
Product Name: Transistor Output Module Alternate Number: A1SY41P
High Light:

plc i o modules

,

plc input output modules

Original Mitsubishi Transistor Output Module Sink Type A1SY41P




Independent overcurrent protection (thermal/short circuit)

Dramatically reduced internal current consumption

Compatible with the previous models

Comply with RoHS Directive



Product Name Transistor Output Module (Sink Type)
Part number A1SY41P
Manufacturer brand Mitsubishi
Description Transistor Output Module (Sink Type) with thermal/short circuit protection
Condition 100% brand new
Warranty one year
Application

Industrial automatio



Specifications

Number of output points 32 points
Isolation method Photocoupler
Rated load voltage 12/24 VDC
Operating voltage range 10.2 to 30 VDC (peak voltage 30 VDC)
MAX. load current 0.1A/point, 2A/common
MAX. allowed rush current 0.7A 10ms or less
Leakage current at OFF circuit 0.1mA or less
MAX. voltage drop at ON circuit 0.1VDC (TYP.) 0.1A, 0.2 VDC (MAX.) 0.1A
Surge absorber Zener diode
Fuse rating None
Common terminal arrangement 32 points/common (common terminals: A1, A2)
Protection function Yes (thermal protection, short circuit protection) •Thermal protection is activated in increments of 1 point. •Short circuit protection is activated in increments of 1 point.
Error display None
Operating indicator ON state is indicated (LEDs)
External connections 40-pin connector
Applicable wire size 0.3mm2
Applicable connector/terminal block converter unit A6TBXY36, A6TBXY54
Accessories Connector (1 pce.) for external wiring (soldering type)
Voltage 12/24 VDC (10.2 to 30 VDC)
Current 12mA (TYP. 24 VDC/common)
Internal current consumption (5VDC) 141mA (TYP. all points ON)
