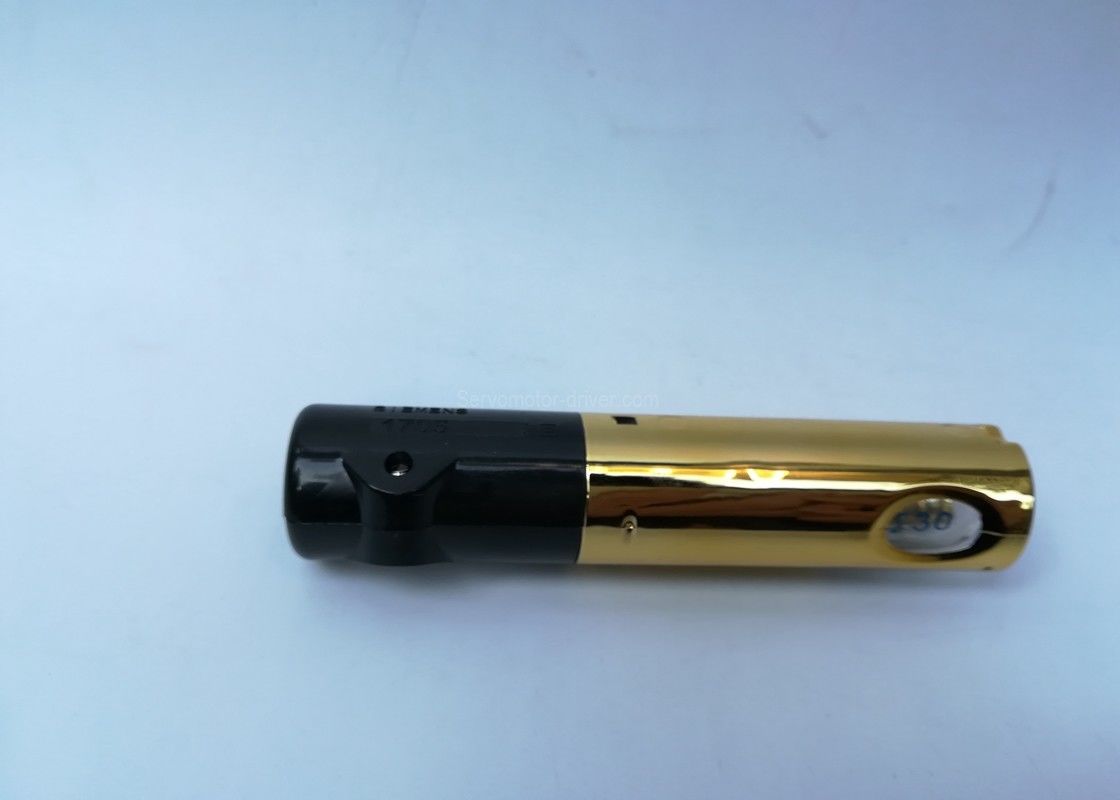

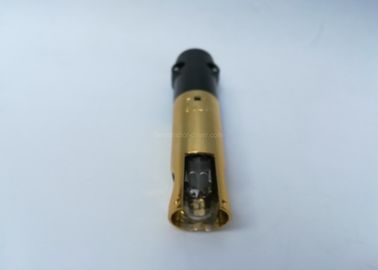

SIEMENS QRA2 Flame Detector Photocell, UV-Detector, Burner Flame Detector
Type reference | For use with burner control type | Operating mode |
QRA2..., QRA10... | LGB2... / LGB4... with AGQ1... LFL... LFE1... LFE10... LMG... with AGQ2... LME21… / LME22… / LME39… with AGQ3… LMV2… / LMV3... LMV5… with AGQ1… |
Intermittent |
QRA53..., QRA55... | LGK16... LGI16... |
Continuous |
QRA73…, QRA75… |
LMV5… |
Continuous |
QRA2 | QRA53.G17 |
QRA2M | QRA55.C27 |
QRA10.C | QRA55.C17 |
QRA10M.C | QRA55.D27 |
QRA53.C27 | QRA55.D17 |
QRA53.C17 | QRA55.E27 |
QRA53.D27 | QRA55.E17 |
QRA53.D17 | QRA55.G27 |
QRA53.E27 | QRA55.G17 |
QRA53.E17 | QRA73.A27 |
QRA53.G27 | QRA73.A17 |
QRA75.A17 | QRA75.A27 |
Technical parameters:
Product Description: QRA2 - UV flame detector, normal sensitivity, without flange/clamp
UV The life expectancy unit: 10000 hours (At 50 degrees Celsius)
Protection level: IP40
Weight:60g
Running environment : IEC 60 721 -3-3
Temperature range: -20...+60
Internal conditions: Class 3
Temperature range: -20...+60
Mechanical condition: 3M
Transportation environment: IEC 60 721 -3-2
Internal conditions: Class 2K2
Mechanical condition: 2M2
Type reference | Sensitivity | Detector tube length | Mains voltage | Spare UV tube |
QRA53.C27 | norma | 125 mm | AC 220-240 V | AGR4 502 4065 0 |
QRA53.C17 | AC 100-110 V | |||
QRA53.D27 | high | 125 mm | AC 220-240 V | |
QRA53.E27 | norma | 125 mm | AC 220-240 V | |
QRA53.E17 | AC 100-110 V | |||
QRA53.G27 | high | 125 mm | AC 220-240 V | |
QRA53.G17 | AC 100-110 V | |||
QRA55.C27 | norma | 69 mm | AC 220-240 V | |
QRA55.D27 | high | 69 mm | AC 220-240 V | |
QRA55.D17 | AC 100-110 V | |||
QRA55.E27 | norma | 69 mm | AC 220-240 V | |
QRA55.E17 | AC 100-110 V | |||
QRA55.G27 | high | 69 mm | AC 220-240 V | |
QRA55.G17 | AC 100-110 V |
Notice
no copy,no fake,no renew or rebulid,100% genuine.
in this item please confirm the right model number before you order it.
if you have any questions please mail us before you purchase it.
in this item we can provide you more photos in details if you wanna.
this item just include what you can see in the picture,all the accessories are showwed in the photos.
