ROHS Fanuc Power PC Board CNC Circuit Board A20B-2101-0025
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Type: | Alpha Spindle Module Wiring PCB. | Condition: | Brand New |
|---|---|---|---|
| Warranty: | One Year | Application: | CNC Lathe / Sewing Machine / Printer / Industrial Robot |
| Product Name: | Fanuc Spindle Control Board | Alternate Number: | A2OB-21O1-OO25 |
| High Light: | electronic printed circuit board,main printed circuit board |
||

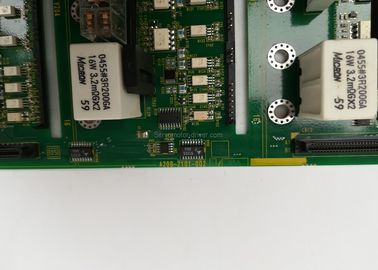

Original Fanuc A20B-2101-0025 Power PC Board CNC Machine Circuit Board
Fanuc A20B-2101-0025 BETA Triple axis 15kW power PCB
Fanuc A20B-2101-0025 BETA Servo / Spindle Combo Unit (biSVSP) power board
βi SVSPM1-40/40/40-15i Power PCB SVPM3-15i Power PC board
| Product Name | Fanuc A20B-2101-0025 Power PC Board |
| Part nmber | A20B21010025 A20B 2101 0025 A2OB-21O1-OO25 A2OB 21O1 OO25 |
| Manufacturer brand | FANUC |
| Description | cnc parts PCB circuit board |
| Condition | 100% brand new |
| Warranty | one year |
| Application | For cnc controller |
Item SVPM3-5.5i (TypeA) SVPM3-5.5i (TypeC) SVPM3-11i (TypeA) SVPM3-11i (TypeC) SVPM3-15i (TypeA) SVPM3-15i (TypeC) Unit specification A06B-6134-H301#A A06B-6134-H301#CA06B-6134-H302#A A06B-6134-H302#CA06B-6134-H303#A A06B-6134-H303#C Power PC board A20B-2101-0023 A20B-2101-0023 A20B-2101-0024 A20B-2101-0024 A20B-2101-0025 A20B-2101-0025 Control PC board A20B-2101-0013 A20B-2101-0013 A20B-2101-0013 A20B-2101-0013 A20B-2101-0013 A20B-2101-0013 Module PC board A20B-2902-0670 A20B-2902-0672 A20B-2902-0670 A20B-2902-0672 A20B-2902-0670 A20B-2902-0672 Input voltage 200-240VAC (+10%,-15%) 50/60Hz Main power supply 3-phase input Input current(50Hz) 26Arms 49Arms 64Arms Power supply rating 9KVA 17KVA 22KVA Control power supply Input voltage 24VDC ± 10% Input current 1.5Amax. Control method Sine wave PWM control with Transistor Bridge Rated output current of spindle 29Arms 56Arms 64Arms Basic output frequency of spindle 60Hz Output frequency range of spindle 1Hz-1KHz Rated output current of servo axis L axis 6.5Arms 6.5Arms 13Arms Ｍ axis 6.5Arms 6.5Arms 13Arms N axis 13Arms 13Arms 13Arms Maximum output current of servo axis L axis 20Ap 20Ap 40Ap Ｍ axis 20Ap 20Ap 40Ap N axis 40Ap 40Ap 40Ap Output frequency range of servo axis 0Hz-334Hz High Current IPM Abnormal High Voltage of DC Link Protection function Low Voltage of DC Link Low Voltage of Control Power Supply Short Time Overload FSSB Communication Error Ambient temperature 0-+55 °C Weight 14.8kg Dimensions Outside dimensions 260x380x272 Fin dimensions 260x380x100 Option AC reactor A81L-0001-0155 A81L-0001-0156
