Product Details:
Payment & Shipping Terms:
|
Product Type: | Point I/O RTD | Condition: | Brand New |
---|---|---|---|
Warranty: | One Year | Application: | Automation Machine |
Product Name: | Isolated Thermocouple Input Module | Alternate Number: | 1734IR2 |
High Light: | plc i o modules,plc input output modules |

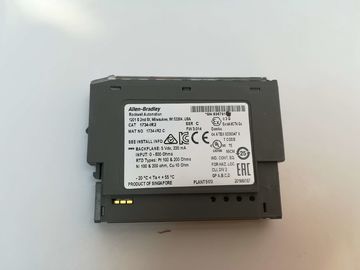

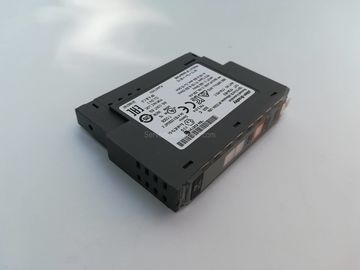

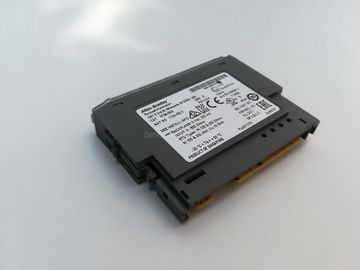

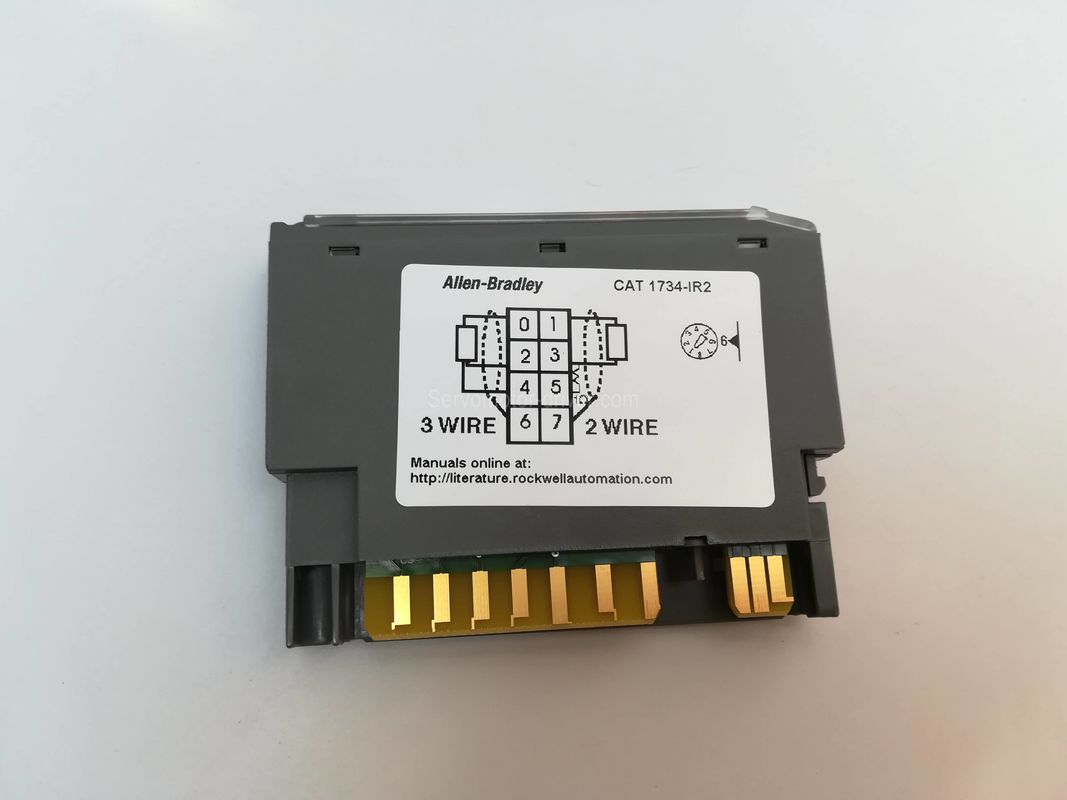

Allen Bradley Point I/O RTD and Isolated Thermocouple Input Module 1734-IR2
The 1734-IR2 consists of two RTD inputs (0 to 600Ω). The module can be configured to do the linearization necessary for RTD inputs.
1734-IR2 RTD Input Analog Module
Number of Inputs 2 single-ended, non-isolated
Resolution 16 bits
Point I/O 2 Channel RTD Input Module, 24 V DC
Point I/O 2AI RTD 0-600 OHM Module
Up to 8 single-ended inputs or outputs per module
Individually configurable channels
On-board scaling
Thermocouple and RTD modules available
Over-range and under-range detection
Selectable input filters
Product Name | input module |
Part number | 1734IR2 1734 IR2 |
Manufacturer brand | Allen Bradley |
Condition | 100% brand new |
Warranty | one year |
Application | Industrial automation |
Product Series | Point I/O (Bul. 1734) |
Component Type Fieldbus I/O | I/O - Analogue Input Module |
Number of Analogue Inputs | 2 qty |
Analogue Input Type(s) | RTD / Resistance |
Analogue Input Range(s) | 0 ... 600Ω 100Ω Pt 385 100Ω Pt 392 200Ω Pt 385 200Ω Pt 392 10Ω Cu 427 100Ω Ni 618 120Ω Ni 618 120Ω Ni 672 |
Power Supply | 24V DC |
Analogue Resolution, Input | 16 bit (signed) |
Operating Temperature, Max | 55 °C max |
Operating Temperature, Min | -20 °C min |
Storage Temperature, Max | 85 °C max |
Storage Temperature, Min | -40 °C min |
Relative Humidity, Max | 95 %RH |
Humidity type | Non-condensing |
