Product Type: | Use With Siemens Burner Controls | Condition: | Brand New |
---|---|---|---|
Warranty: | One Year | Application: | Automation Machine |
Product Name: | Infrared Flame Detector | Alternate Number: | QRI2A2B180B |
High Light: | industrial automation components,plc spare parts |

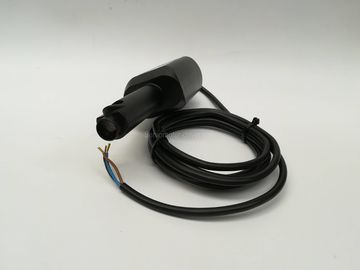

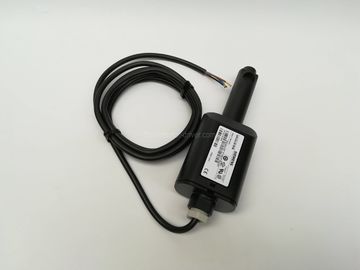

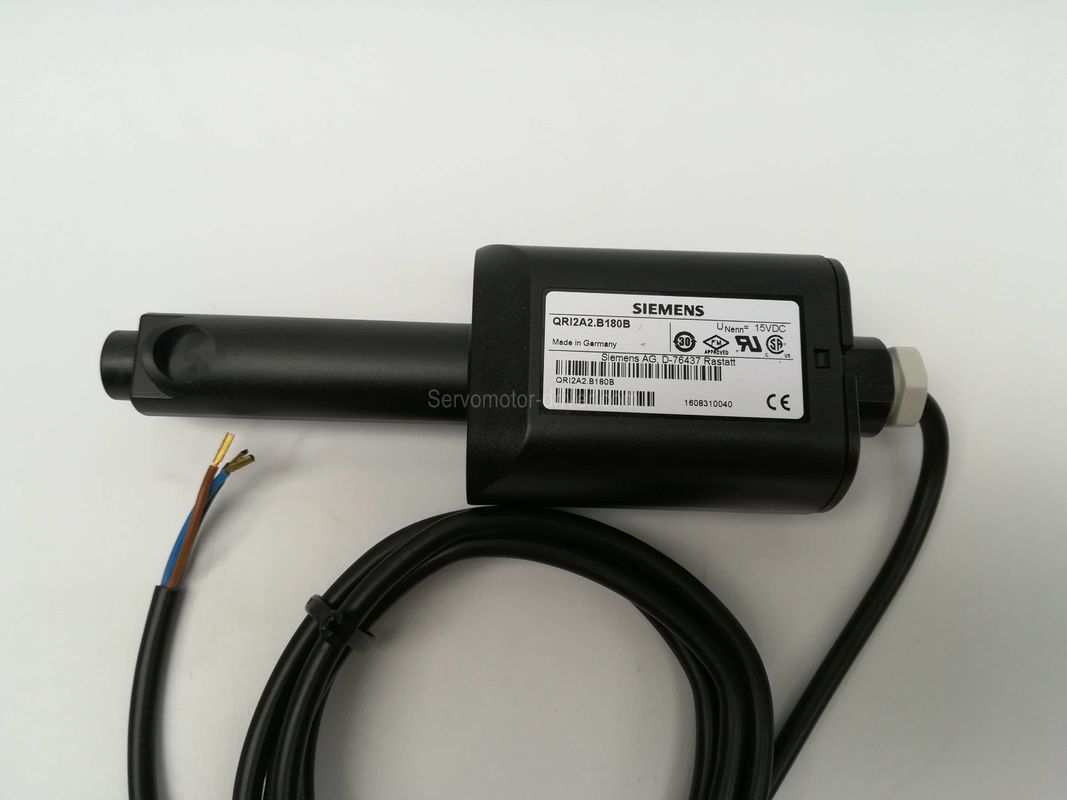

Siemens Infrared Flame Detector Front Cable 180cm Stripped Ferrules QRI2A2.B180B
QRI2A2.B180B - Infrared flame detector, front, cable 180cm, stripped+ferrules
Plastic casing, for frontal illumination, standard sensitivity, visible cable length 180 cm, stripped/ferrules.
Infrared flame detectors for use with Siemens burner controls, for the supervision of gas, oil and other flames that emit infrared light.
Suited for burners of any capacity, either in continuous or intermittent operation.
Operation | DC 14 V ±5 % |
Test | DC 21 V ±5 % |
Signal voltage | DC 0...5 V |
Length of connecting cable | Max. 180 cm |
Degree of protection | IP54 |
Power consumption | < 0.5 W. |
Length of auxiliary detector cable | Max. 100 m |
Safety class | II |
Vibrations to IEC 6068-2-6 | max. 1 g / 10...500 Hz |
Weight incl. cable 180 cm | approx. 0.175 kg |
Mounting position | optional |
