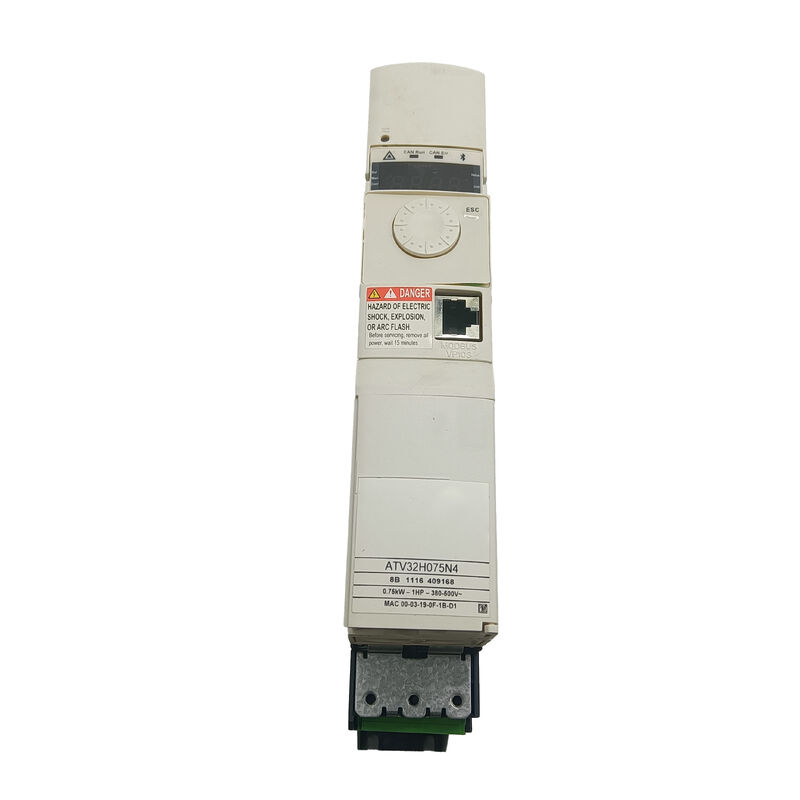

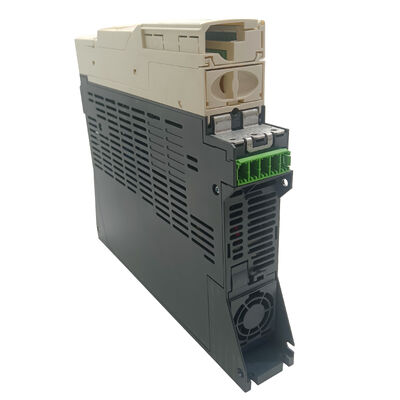

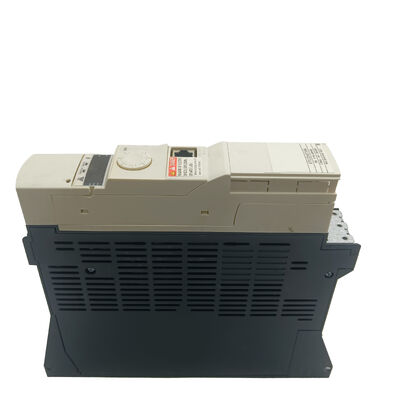

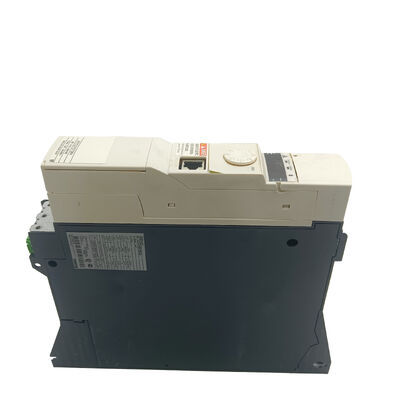

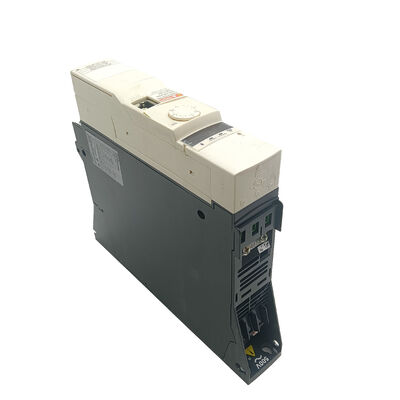

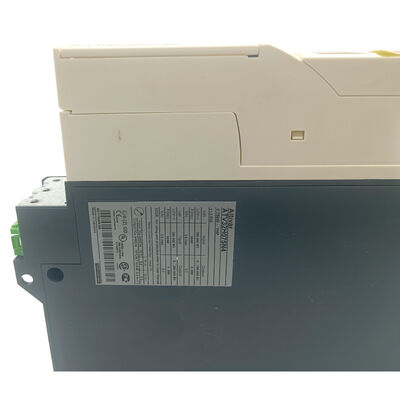

ATV32H075N4 Genuine Schneider Electric Altivar 32 Series | 0.75kW | 3-Phase 380–480V

ATV32H075N4 inverter is a high-performance inverter under the Schneider Electric brand, belonging to the Altivar 32 series. It is designed for three-phase asynchronous and synchronous motors with a rated voltage of 380 to 500V and a power rating of 0.75kW. The inverter features a compact book-type design, allowing for side-by-side installation or mounting on the side of densely packed enclosures, thus saving space. With over 150 functions, including specific application functions such as conveying, cutting, and lifting, it can meet various industrial needs. Additionally, the ATV32H075N4 inverter offers multiple communication card options, enabling seamless integration into different control system architectures. Its built-in Class C2 electromagnetic compatibility filter effectively reduces electromagnetic interference. The inverter also includes safety functions such as Safe Torque Off (STO), Safe Limited Speed (SLS), and Safe Stop 1 (SS1).

ATV32H075N4 Electric Variable Speed Drive

Genuine Schneider Electric Altivar 32 Series | 0.75kW | 3-Phase 380–480V

Product Overview

The ATV32H075N4 is a genuine Schneider Electric Altivar 32 Variable Speed Drive (VSD) designed for precise motor control in compact and performance-driven industrial applications. With advanced vector control technology, integrated safety functions, and high efficiency operation, this drive is ideal for OEM machines and automated equipment requiring reliable speed and torque regulation.

Built to operate in demanding environments, the ATV32 series delivers stable performance, reduced energy consumption, and seamless system integration.

Key Technical Specifications

• Rated Power: 0.75 kW (1 HP)

• Input Voltage: 3-Phase 380–480 V AC (±10%)

• Output Current: Approx. 2.1 A

• Motor Control Type: Sensorless Flux Vector Control (SVC) / V/F Control

• Frequency Range: 0.1 – 599 Hz

• Overload Capacity:

  • 150% for 60 seconds

  • 170% for 2 seconds

• Efficiency: Optimized for energy-saving motor operation

• Enclosure Rating: IP20

• Cooling Method: Forced air cooling

• Mounting: DIN rail / Panel mounting

Core Functional Advantages

⚡ Advanced Motor Control Precision
Supports sensorless vector control for high torque at low speed, ensuring smooth acceleration and stable operation under variable loads.
