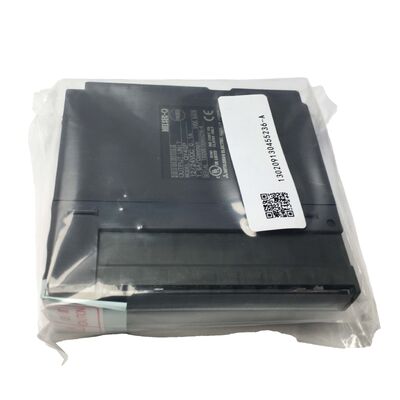

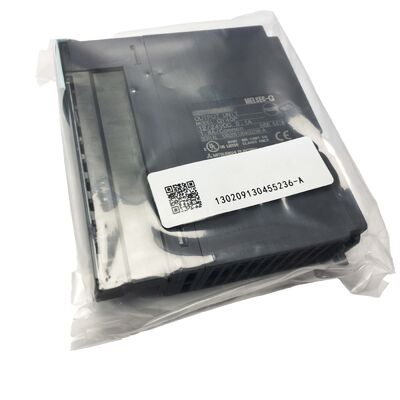

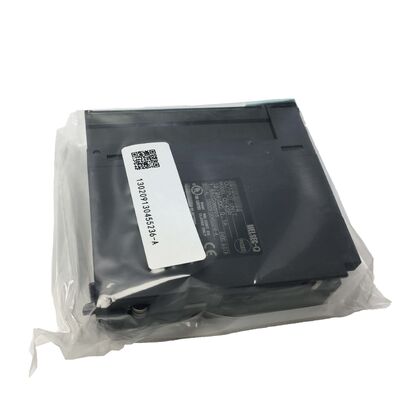

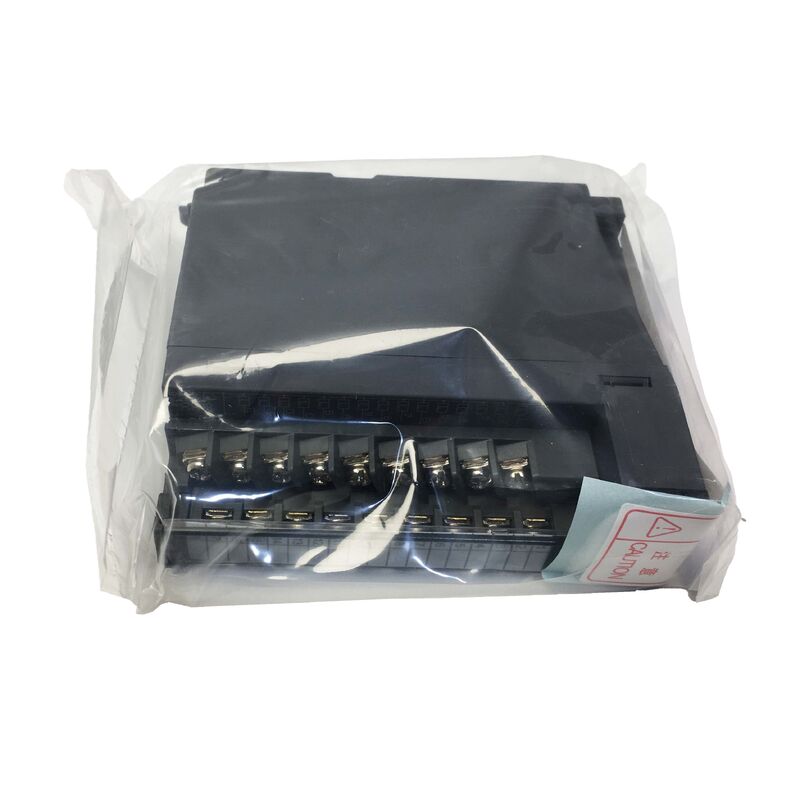

QY40P New Factory Sealed QY40P Output Unit Module

QY40P New Factory Sealed Output Unit Module

High-Reliability Digital Output Module for Mitsubishi Q Series PLC

The QY40P Output Unit Module is a genuine Mitsubishi Electric digital output module designed for stable, high-speed signal control in Q-series PLC systems. Delivered brand new and factory sealed, this module ensures original quality, long service life, and seamless compatibility with Mitsubishi automation platforms.

Built for demanding industrial environments, the QY40P provides precise output control for actuators, relays, solenoid valves, and other field devices—making it a dependable choice for production lines, machinery automation, and process control systems.

Key Features

• Type:	MELSEC-Q Series Digital Output Module
  Rated Input Voltage (V):	DC 12~24
  Occupied I/O Points on PLC:	16 points
  Integrated digital outputs:	16 points
  Output type:	Transistor
  Output logic:	SINK
  Power supply (VDC):	12~24
  Int. current consumption (A):	0.065
  Height (mm):	98
  Width (mm):	27.4
  Depth (mm):	90

Protection Design and Application Scenarios

This module has an IP54 protection rating (IP56 for panel protection), effectively resisting dust and low-intensity water splashes, and is suitable for operating temperatures up to 40℃. Made of plastic, its compact structure makes it ideal for installation inside mechanical equipment. The module supports third-party communication product integration and can be linked with PLCs, motor inverters, touchscreens, and other devices, offering strong scalability. Application scenarios include production line automation control, equipment status monitoring, data acquisition and storage, and it is particularly suitable for industrial scenarios with high requirements for stability and response speed.

Technical Specifications

• Catalog Number: QY40P

• Voltage Range: 15–30V DC

• Output Type: Source (PNP) transistor

• Points per Module: 32

• Max Current per Point: 0.5A

• Max Current per Common: 4A

• Response Time: ≤ 0.1 ms

• Leakage Current (OFF): ≤ 0.1 mA

• Voltage Drop (ON): ≤ 0.5V

• Insulation Type: Photocoupler

• Mounting Method: Rack mount (MELSEC-Q base unit)

• Operating Temperature: 0°C to 55°C

• Dimensions: Approx. 98 x 27.4 x 90 mm

• Weight: ≈ 0.2 kg

• Certifications: CE, UL, RoHS
