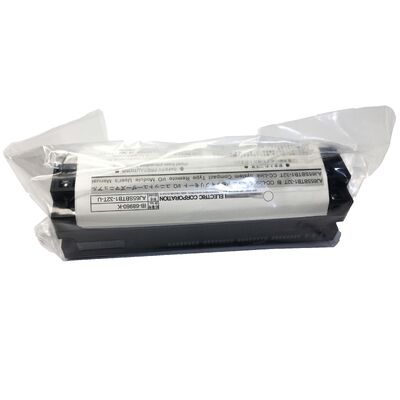

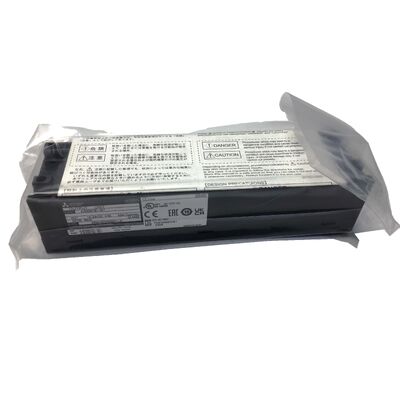

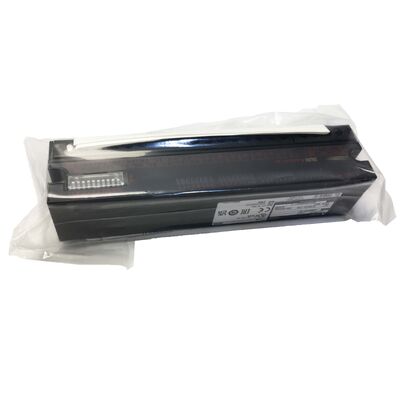

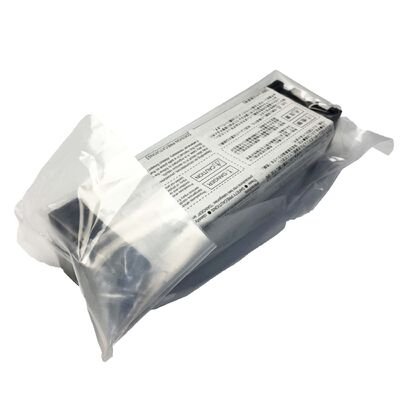

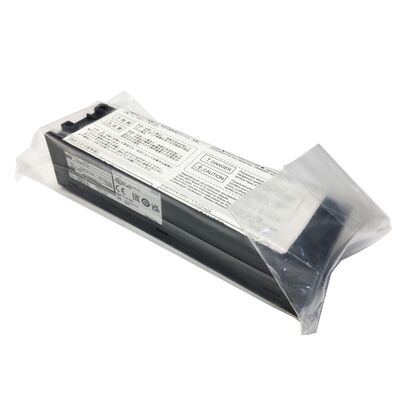

AJ65SBTB1-32T Genuine New AJ65SBTB132T Output Unit Module

AJ65SBTB1-32T Genuine New Output Unit Module

CC-Link Remote Output Module | 32-Point Transistor Output | Mitsubishi Electric

Product Overview

The AJ65SBTB1-32T is a genuine Mitsubishi Electric CC-Link remote output unit, designed for high-speed, high-reliability digital output control in distributed automation systems. Featuring 32-point transistor outputs, this module enables stable signal transmission and fast response for industrial machinery, production lines, and control panels.

Built for seamless integration into CC-Link field networks, the AJ65SBTB1-32T reduces wiring complexity while maintaining precise output control across long distances, making it an ideal choice for modern factory automation architectures.

Key Technical Specifications

• Model: AJ65SBTB1-32T

• Output Type: Transistor Output

• Number of Outputs: 32 Points

• Rated Output Voltage: 24V DC

• Output Current: 0.1 A per point

• Communication Protocol: CC-Link

• Response Time: High-speed ON/OFF switching suitable for real-time control

• Connection Method: Terminal block

• Mounting: DIN rail / panel mount

• Condition: Genuine New, Factory Original

• Manufacturer: Mitsubishi Electric

Technical Specifications and Usage Details

Output Specifications:
Number of Outputs: 32 transistor outputs
Output Type: Sink type, operates by drawing current from the load (grounds the current)
Compact Design: Small profile suitable for installations in limited spaces

Network Requirements: Compatible with CC-Link networks, supporting centralized control for extensive output management.

Commissioning and Recommendations

Installation and Connections: Ensure secure mounting and proper connections according to CC-Link standards, especially in confined areas.
Initial Testing: Test each output point to confirm reliable operation and signal control.
Routine Maintenance: Regularly inspect connections, particularly in demanding industrial environments. Use GX Works2 or GX Developer software to monitor network performance.

The AJ65SBTB1-32T offers a reliable, large-scale sink-type output solution for industrial automation systems requiring centralized control. Proper installation and maintenance will ensure long-term, dependable performance.

Typical Applications

• Automated production lines

• Industrial robots and handling systems

• Packaging and assembly machinery

• PLC-based control cabinets

• Distributed I/O systems in manufacturing plants
