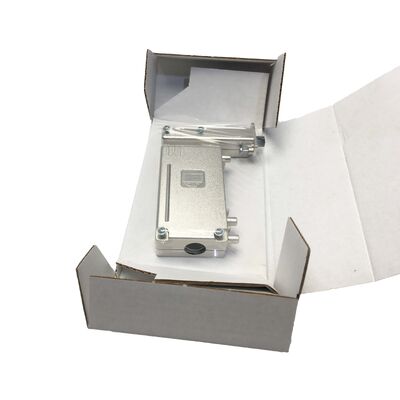

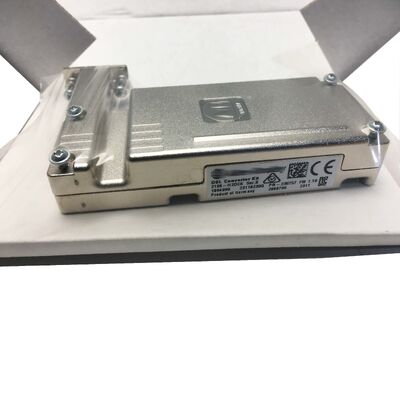

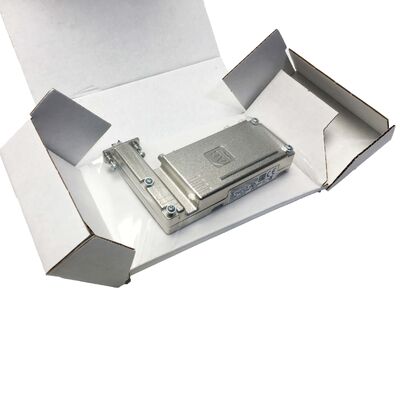

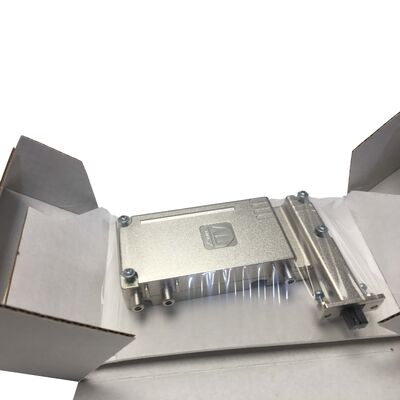

2198-H2DCK New Factory Sealed 2198-H2DCK AB Ser.B DSL Convertor Kit

2198-H2DCK New Factory Sealed Ser.B DSL Convertor Kit – Technical Description

The 2198-H2DCK serves as a dedicated interface module for converting Hiperface encoder signals into DSL (Digital Servo Link) signals accepted by Allen-Bradley Kinetix 5500 drives. This converter enables users to integrate motors equipped with Hiperface encoders into newer drive architectures without needing to replace the motor itself, providing cost-effective modernization of motion systems. Designed with robust electronics and compliant with CE, KC, and RCM standards, the module maintains signal integrity and ensures reliable closed-loop control during high-performance motion operation. Its compact build allows for straightforward installation and wiring, while the optimized internal design supports stable and accurate feedback translation critical for precision servo control. The 2198-H2DCK is well-suited for machine builders and facilities transitioning to Kinetix 5500 technology while retaining existing motor assets.

Key Features:

• Dedicated Signal Conversion: Converts Hiperface motor encoder signals into DSL feedback accepted by Kinetix 5500 drives, enabling mixed-generation system compatibility.
• Precision Feedback Handling: Maintains accurate signal integrity for stable servo performance and reliable closed-loop motion control.
• Compact Integration Design: Small, lightweight module allows easy installation into control panels and motion system assemblies.
• Standards-Certified Construction: Meets CE, KC, and RCM compliance requirements for global industrial installations.
• Upgrade-Friendly Architecture: Facilitates modernization of existing servo systems without replacing motors, reducing downtime and hardware costs.
• Reliable Electrical Interface: Engineered for consistent operation under industrial conditions with durable internal components.
• Designed for Kinetix 5500 Systems: Ensures full compatibility with DSL-based feedback inputs used in advanced Rockwell Automation drives.

The 2198-H2DCK delivers the reliability and precision required for integrating Hiperface-equipped servo motors into modern Kinetix 5500 motion systems.

Technical Specifications:

Applications:

• Industrial automation and control networks

• PLC communication extension via DSL

• Remote monitoring and data acquisition

• Upgrading legacy systems to DSL-based networks
